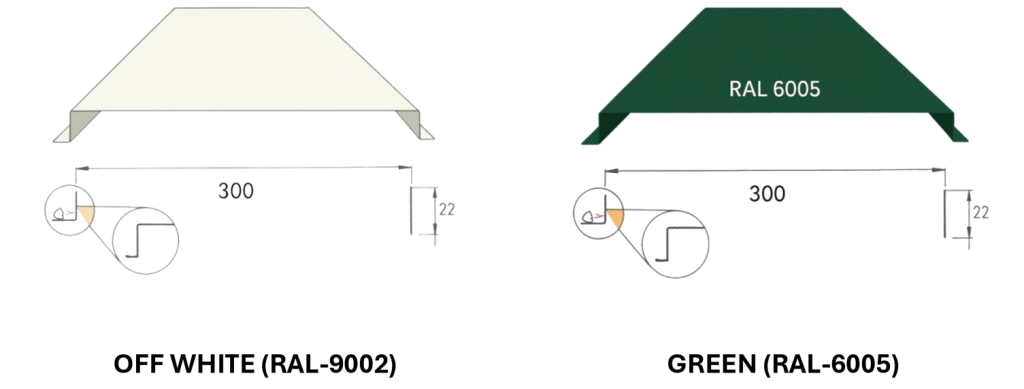

Flat Panel (FP300)

Composition: 55% Aluminium Zinc Alloyed Coated
Technical Standard: ASTM, DIN, GB, JIS
Grade: CGCC, TDC51D+Z
Type: Pre-painted steel sheet
Thickness: 0.6mm
Width: 300mm
Coating: Z30–Z275, AZ150
Finish Paint:
- Polyester (PE)
- High-Durability Polyester (HDP)
- Silicon Modified Polyester (SMP)
- Polyvinylidene Fluoride (PVDF)
Substrate Steel:
- Cold rolled steel
- Hot dip galvanised steel
- Galvalume steel
- Electro-galvanised steel
Paint Application:
- Top surface: Primer + Final 25 Micron
- Back surface: Primer + Final 7 Micron
